HWI38030210 -

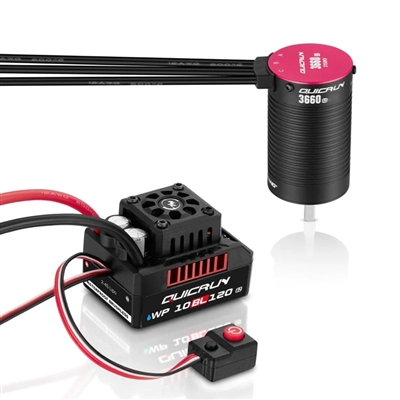

COMBO QUICRUN 10BL120 G2+3660 SL G2; 3150KV
Features:- QUICRUN WP 10BL120 SL G2 ESC (Waterproof, Sensorless) x 1
- QUICRUN 3660SL G2 brushless motor 3150KV x 1
- HOBBYWING decals x 1
- Accessories x 1 set
Features:- High
protection level, all-weather operation: The IP-67 waterproof Rating
guarantees excellent waterproof and dustproof protection. The whole
power system is able to drive on a variety of surfaces including mud,
sand, ice, snow and water without damaging the power unit.
- Intelligent
freewheeling technology, greatly improved performance: The innovative
intelligent freewheeling technology enables higher driving efficiency
and lower operating temperature of the ESC, and further improves the
stability and reliability of the ESC.
- Powerful built-in BEC: The
ESC has a built-in BEC with a continuous current of 5A and supports a
maximum output current of up to 10A. The output voltages are switchable
between 6V, 7.4V. This ensures that the ESC is able to support the
demanding high-torque servos in the market.
- Efficient cooling
system: The integrated radiator design, combined with the patented
copper thermal conduction sink on the internal power board of the ESC,
facilitates the rapid conduction of internal heat to the radiator, and
the fan is added to dissipate heat. These results an efficient heat
dissipation system to ensure that the ESC is always in a good heat
dissipation state.
- Capacitor Thermal Protection: Capacitor
thermal protection is designed and implemented into the ESC to
effectively prevent capacitors from exploding and causing irreversible
damages to the ESC due to overloading.
- Built-in capacitor: Super
large built-in capacitor of the ESSC is as high as 1640uF. External
capacitors are not needed for the 10th scale models on the market and
helps improve ease of use.
ESC Specifications:- Cont./Peak Current: 120A/760A
- Motor Type: Sensorless/Sensored Brushless Motor(only in sensorless mode)
- Applications: 1/10th Short course truck. Monster truck
- Motor Limit: With 3S LiPo = KV<4000 3660 size motor, With 4S LiPo = KV<2600 4268 size motor
- LiPo Cells: 2-4S LiPo
- BEC Output: 6V/7.4V adjustable, continuous current 5A (Switch-mode)
- Cooling Fan: Powered by built-in BEC
- Size/Weight: 52.8(L) x 39.8(W) x 38.2(H)mm/119g(Included wires&connectors)
- Programming Port: Independent programming port
Features:- Excellent
performance, temperature is lowered: The motor efficiency is
significantly higher when comparing it with the same specification.
Taking 3652-3250KV as an example, the efficiency of the rear section is
8% higher, motor temperature is lower under the same load condition.
- Explosion-proof
rotor design, strong and reliable: The rotor is designed with front and
rear aluminum end plates, which greatly improves the overall balance.
At the same time, the rotor is wound with high-strength tensile
materials and has strong explosion-proof ability.
- Solid
material, strong and reliable provide a solid guarantee for the
long-term excellent performance of the motor. It adopts high-hardness
aluminum CNC end cover. 0.2mm ultra-thin and low-loss silicon steel
sheet. Top of the line high-precision and high-quality bearings. 200
degrees C high-temperature-resistant enameled wire with high current
silicone wires.
- Detachable design for easy maintenance: The
motor adopts a modular detachable structure design, which is convenient
for routine cleaning and maintenance, effectively prolonging the service
life of the motor and maintaining the working efficiency of the motor.
Motor Specifications:- KV: 3150KV
- LiPos: 2-3S
- No-load Current(A): 5.4A
- Diameter/Length(mm): O=36mm(1.42in), L=60mm(2.36in)
- Shaft Diameter/Length(mm): O=5mm(0.20in), L=18.5mm(0.73in)
- Bearing Size(mm): Front=D16*D5*T5, Rear=D13*D5*T4
- Poles: 4
- Weight(g): 273g
- Applications: 1/10 Truck, Monster truck
|
|
|
 |
|
 |
|
