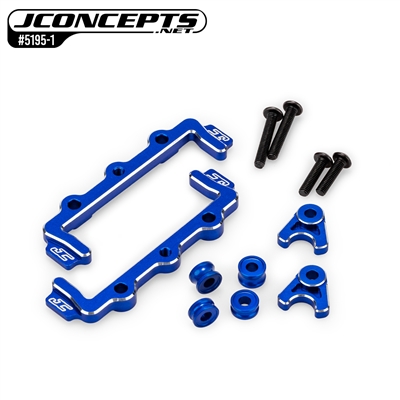

JCO51951 - RC10B7 Aluminum Battery Hold Set

The JConcepts swing operated battery retainer is designed for simplicity, adjustability, and quick battery changes. The aluminum rails bolt to the standard RC10B7 | RC10B7D | RC10T7 | RC10SC7 chassis side guards and functions like the stock plastic components. The aluminum swings include hardware for installation and spacers for height adjustment depending on which battery type is used in the vehicle.

When using a tall battery pack, it’s necessary to install the tall stand-offs under the swing part to raise the height of the entire assembly. For the low-profile battery pack, install the short stand-offs to outfit the configuration to adapt to the required height. Two different length BHCS screws are included and should be used in conjunction with the corresponding stand-off. It is also necessary to use the stock O-rings from the kit parts to provide the cushion and vibration resistance.

Some individual preference might be different and by using any assortment of 3mm I.D. washers, a wide range of height adjustments can be achieved to hold battery at desired force.

Features:

Precision machined aluminum

Light weight / durable with pocketing

Included hardware for aluminum swing

Available in blue and black anodized colors

Aesthetic jewelry

Branded JC for authenticity
