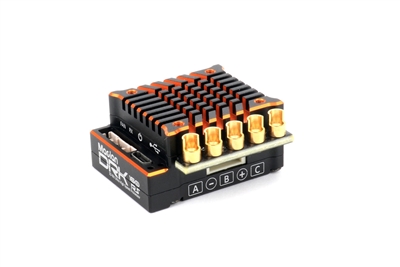

The DRK 160 RS Edition for NPRC Real Street Class

Proprietary 7-Stage launch power control software.

All new profiles designed for NPRC Real Street Class.

Factory pre-soldered 10AWG wires with DRK Super Capacitor module.

Fanless design (You do not need to install the cooling fan).

Programming Options

There are a few options to program the DRK 160 ESC.

Use a ProLink (with cables included in the ProLink, micro USB + OTG cable)

Use a Windows PC and Maclan Panel Software (with cable included in the ESC)

Use an Android mobile device (5.0 OS or higher) and Maclan Smart Link App (with Type C cable, sold separately)

Use an Apple iPhone with Maclan WiFi module (sold separately) with Maclan Smart Link App

Not sure how to program? You can CLICK HERE for all the detailed information.

What is included in the DRK 160 RS Edition box?

DRK 160 RS Edition ESC x1

20cm receiver cable (MCL4243) x1

ESC power switch (MCL4242) x1

USB data cable (MCL4054) x1

Maclan decal x1

If you need to download the user manual, please CLICK HERE.

IMPORTANT Tips:

DRK 160 RS Edition ESC preset profiles are based on 20-degree motor can timing. For best results, set motor can timing to 20 degrees or lower.

When installing your new DRK ESC, please set the radio to factory settings, or use a new, unused model. Using “radio tricks” for throttle manipulation is unnecessary and could cause problems with the ESC, resulting in poor performance, or a damaged ESC. The DRK ESC is designed to replace all other methods of manipulating the throttle.
