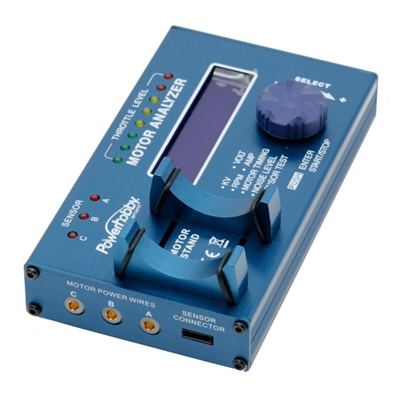

Power Hobby Brushless Motor Analyzer
Power Hobby Brushless Motor Analyzer

Alternative Views:


Your Price: $99.95

Quantity in Stock:2


Product Code: PHBPHBMA01
Qty:

Description


BMA-01 Brushless Motor Analyzer; RPM, KV, Voltage Checker, Motolyzer (Sensored & Sensorless)

Motor analyzer is a precision electronic device that is Specially designed for measuring the KV value, RPM, current drawn, motor timing, vibration noise level, and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display the real-time measuring value of either sensor or sensor-less brushless motor.

KV / VOLT / RPM / AMP:

KV (RPM per Volt) Shows the rotor RPM/Volt at a certain throttle power level.

U (VOLT) Shows the input voltage to the motor checker.

RPM (Revolution Per Minutes) Shows the rotor revolution at a certain throttle power level.

I (AMP) Shows the current drawn by the motor at a certain throttle power level.

MOTOR TIMING - Physical end bell timing, usually between 0 and 70 degrees, requires tools to rotate the sensor board.

NOISE LEVEL - Poor assembly motor, inferior bearing, and unbalanced rotor can generate a vibration. Whenever a motor in the air vibrates, it causes compression waves in the air. These waves move away from the motor as sound or noise.

The vibration noise of the motor is adverse to the Performance of the motor. By measuring the noise level of motors, you can select the less noise motor.

The decibel (dB) is a logarithmic unit used to express noise level in this motor analyzer.

Phase A, B, and C Sensor Timing: Show the actual timing of three sensor elements

Specs

Net Weight: 282 grams (Without Cables)

Input Voltage: 7.4-8.4V (Suggested to Use 7.4V 2S 1P Lipo Battery)

LCD Display Screen: Blue Backlight Background, White Text, 16 Characters x2 Lines

KV Value Accuracy: +/- 3%

Motor Timing Accuracy: +/- 4%

Motor Timing Range: 0-70 deg

Noise Level Measurement Range: 60dB - 120dB

Supported Motor: Sensored or Sensorless Brushless Motors (2 to 36 Poles)

Size

Length: 80.6mm

Width: 136.5mm

Height: 24.5mm

Includes:

(1) Brushless Motor Analyzer

(3) Motor Cables

(1) Motor Sensor Cable

(1) DC Input Power Cable w/Banana Connector

(1) DC Input Power Cable w/Tamiya Connector

(1) Instruction Manual
