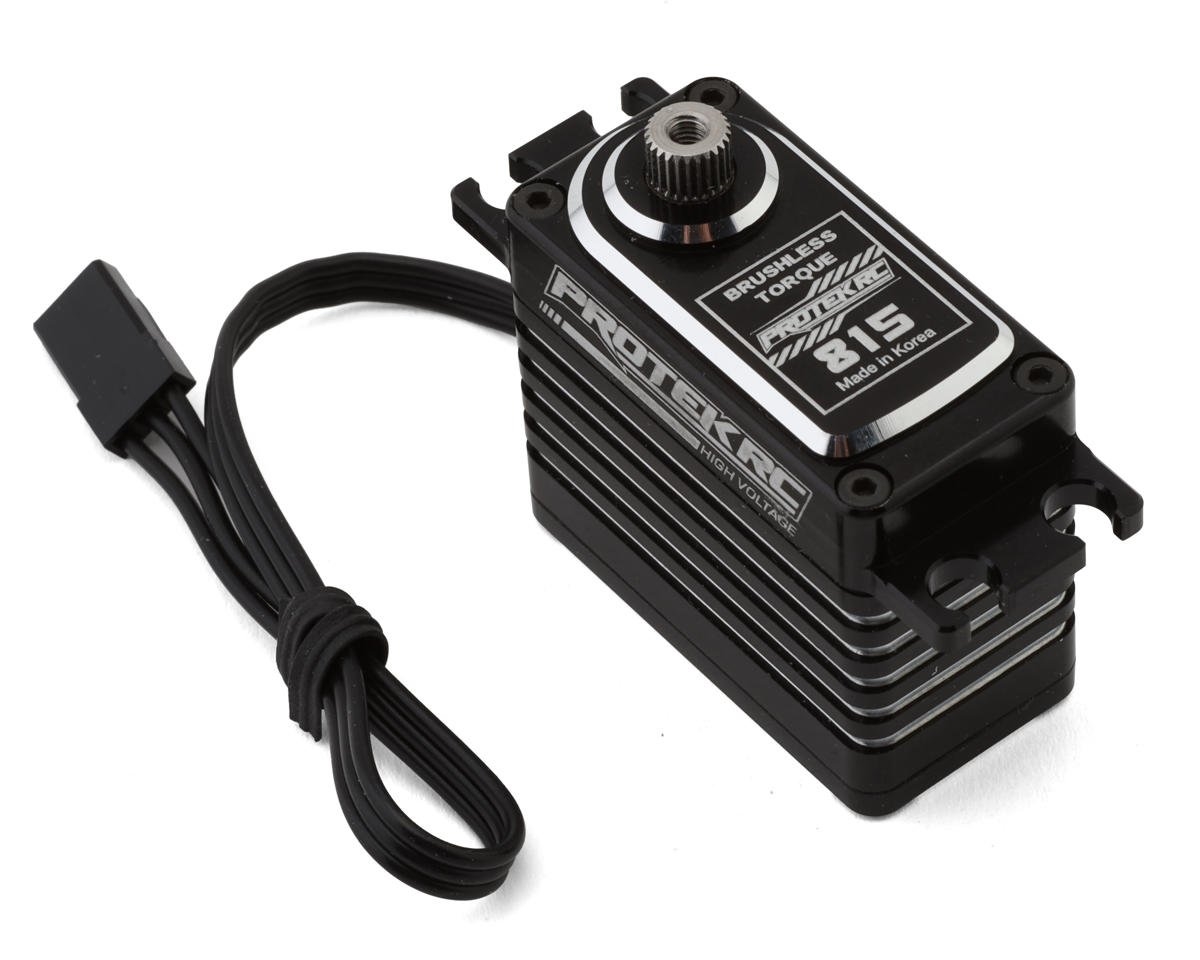

The 815 Mid Profile Servo brings together cutting-edge brushless technology and unmatched performance, delivering the holding power, speed, and precision that rival coreless servos. With the added advantages of brushless motors—greater efficiency and extended lifespan—this servo is the perfect choice for pro-level builds demanding top-tier reliability and accuracy. Housed in a sleek black anodized aluminum case for a premium look, the servo's design is both rugged and functional. The aluminum upper case ensures extreme durability, while the heat sink center case efficiently dissipates heat and reduces overall weight. Included is an aluminum single-arm clamping servo horn and a complete set of mounting washers for secure, long-lasting installation.
Size
This high-performance racing servo is engineered specifically for 1/10 off-road buggy chassis, featuring a mid-profile design that allows the ESC to be mounted further forward compared to standard servos. Its size ensures optimal weight distribution, promoting better handling and overall performance. Perfect for high-precision off-road vehicles, this servo helps improve agility and control in demanding racing conditions.
Power & Gears
The ProTek RC PTK-815 Mid-Profile servo is equipped with a high-performance brushless motor and durable steel gears, ensuring maximum efficiency and longevity. The brushless motor provides smoother operation and higher torque, with less heat generation and longer lifespan compared to traditional motors. Additionally, the steel gears offer exceptional durability, resisting wear and maintaining precise performance even under the high-stress demands of competitive racing environments.
Application & Design
The ProTek 815 Mid-Profile Servo is a perfect fit for 1/10 buggies, offering optimal weight distribution for superior chassis tuning. Its mid-profile design provides increased space in the chassis over a standard-size servo, allowing for better component placement and improved overall balance and performance. Precision-engineered for high-performance applications, this servo enhances control and responsiveness, making it ideal for 1/10 buggy racers seeking agility, stability, and consistency on the track.
Features:
Ideal for a 1/10 Off-Road Racing Platforms
Brushless motor
High voltage circuitry
Full steel gears
Full aluminum black anodized heat sink case
Dual stepped offset spline
Includes:
(1) 815 Mid Profile High Speed Brushless Servo
(1) Aluminum clamping servo horn
Servo Hardware and grommets
Specifications:
Application: 1:10 Scale
Operating Voltage: 6.0V - 8.4V
Operating Temperature: 14° to 140° F (-10 to +60° C)
Operating Speed @ 7.4V: 0.055/60° sec
Operating Speed @ 8.4V: 0.05/60° sec
Dynamic Torque @ 7.4V: 713oz-in (51.3 kg-cm)
Dynamic Torque @ 8.4.0V: 815oz-in (58.7 kg-cm)
Motor Type: Brushless Digital
Output Shaft: 25T
Gears: Steel
Weight: 64g
Pulse/Frequency: 1520s / 333hz
Dimensions: 39.5x20x35.75mm
Length (Bottom to Mount): 24.3mm
