.Reedy 550-SL Sensorless 4-Pole Brushless Motor (3500kV)

Home >

Alternative Views:

Your Price: $64.99

Quantity in Stock:1

Product Code: ASC924

Qty:

Description

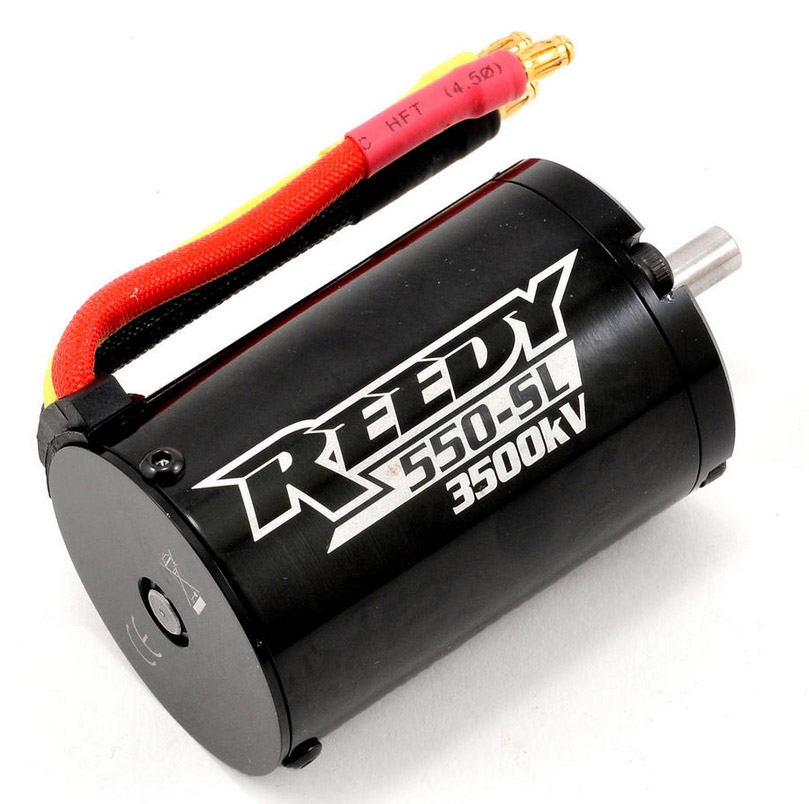

This is the Reedy 3500kV 550-SL Sensorless 4-Pole Brushless Motor. The 550-SL sensorless brushless motors are the perfect choice for an enthusiast looking to upgrade their RTR motor with one that provides increased power and improved reliability. Developed with the engineering experience that is responsible for 28 World Championship titles and incorporating the latest brushless motor technology into the design, these motors have been built with the hobbyist in mind while remaining perfectly suited to competitive on track action.

Due to the sensorless design, Reedy 550-SL Brushless Motors operate powerfully and efficiently without a complicated sensor harness. The 550-SL features a high-torque 4-pole rotor and 5mm output shaft, making it an excellent choice for the increasingly popular short-course 4WD category.

Features:

Oversized precision ball bearings
High-torque 4-pole rotor
Hardened 5mm steel shaft
Triple-insulated windings
Sensorless operation
3.5mm connectors
Completely serviceable

Specifications:
Cells: 2-3S LiPo/4-8 cell NiMH
RPM/Volt: 3500kV
Diameter: 36mm
Length: 55mm
Weight: 210g (7.4oz)
Shaft Diameter: 5mm
Max Efficiency Current: 10-45A
Max Surge Current: 55A/60S
Internal Resistance: 6.5mΩ
