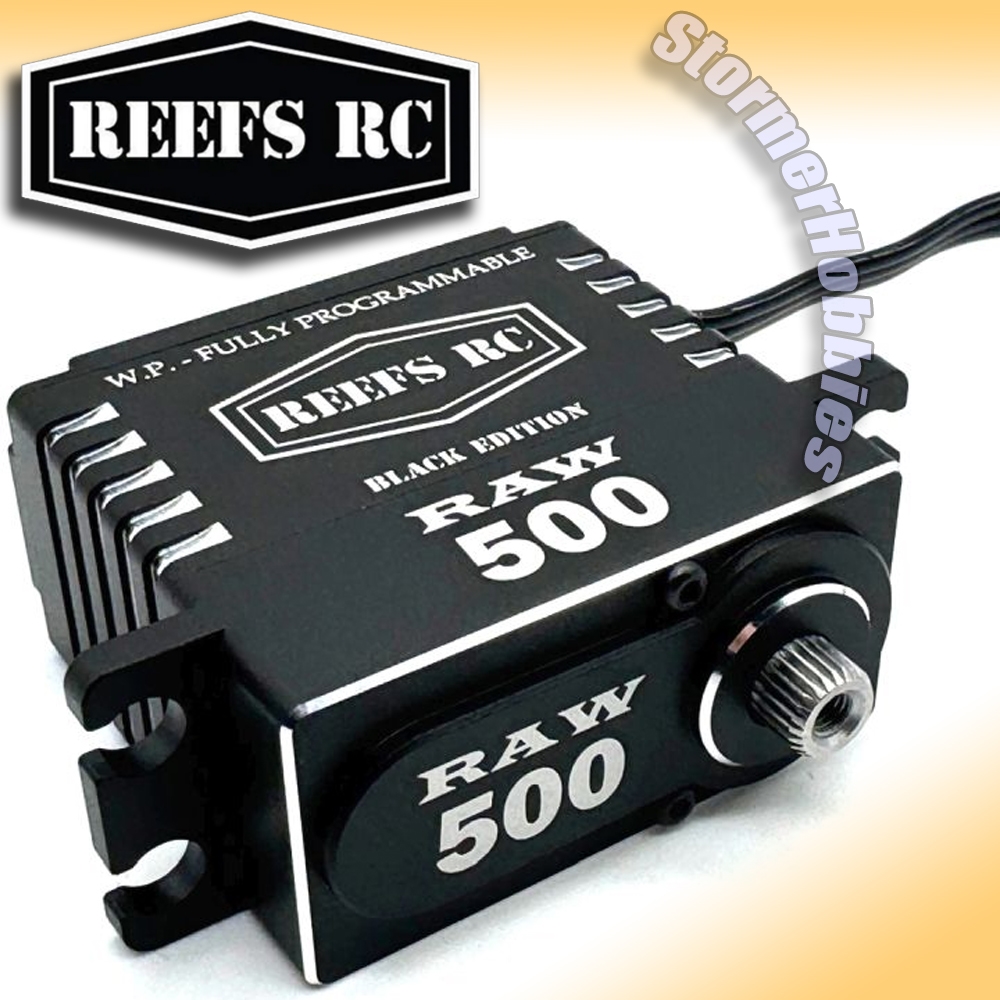

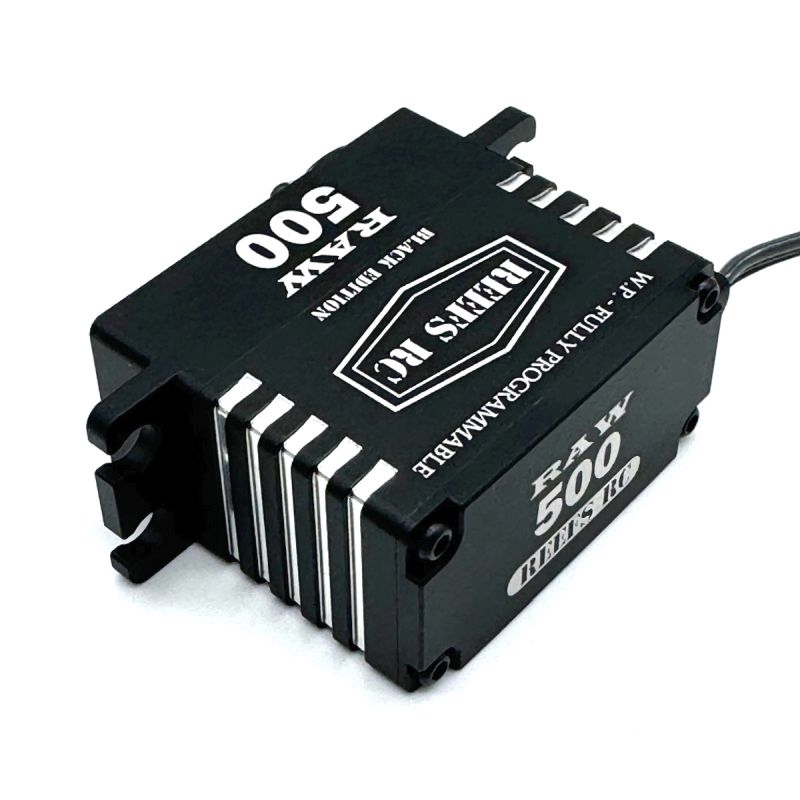

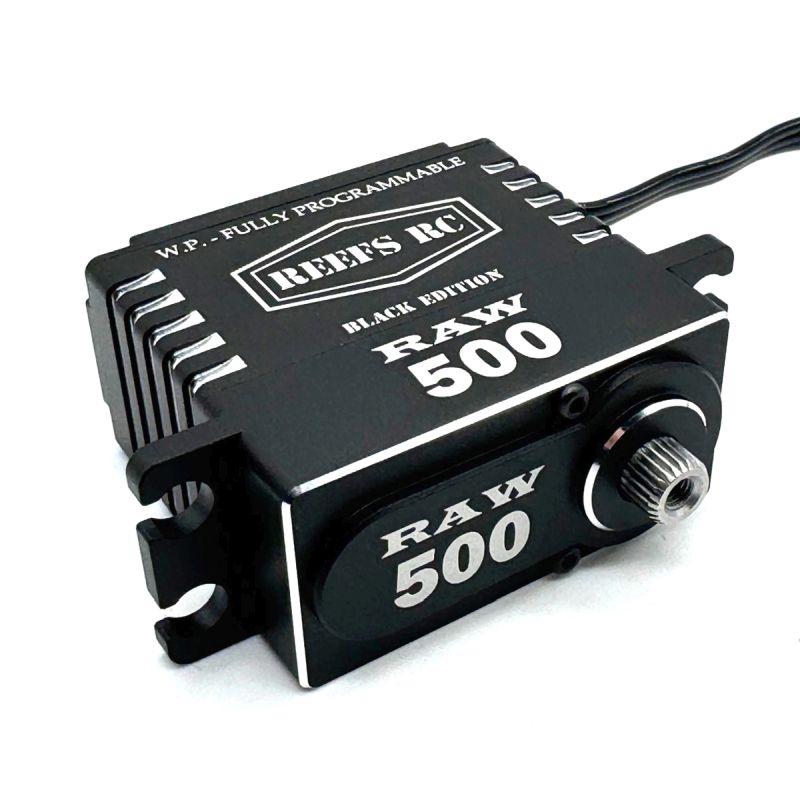

High Torque High Speed Brushless Servo
SUBMARINE WATERPROOF: 7 Point Seals
Military Grade Construction
Magnetic Angle Sensor
Pulse Width Modulation Control
REEFS LINK required for Programming
Specifications:
Voltage 4.8V - 8.4V
Internal: Steel Gears / All CNC Aluminum Casing
Bearing Type: 2 Ball Bearings / Weight: 2.75oz
Dimension: 1.57 x .79 x 1.5 (LWH)
Torque: 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v
Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
Spline: 25T / Dead Band Width: 2s
BEC Not Req. Recommended for max performance
