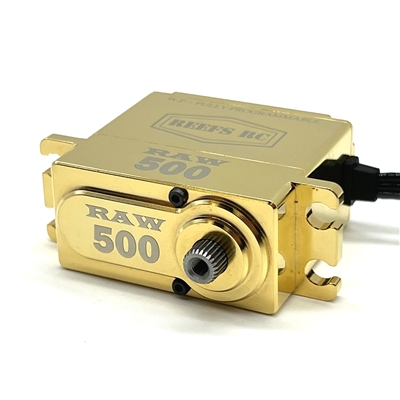

SEHREEFS159 - RAW500 Brass Edition, High Torque, High Speed, Programmable, Brushless Servo (565/.08)
Features:
High Torque High Speed Brushless Servo
Submarine Waterproof: 7 Point Seals
Magnetic Angle Sensor
Pulse Width Modulation Control
Fully Programmable with REEFS Software (REEFS LINK required for Programming)
Specifications:
Input Voltage Range: 4.8 V - 8.4 V
Bearing Type: 2 Ball Bearings
Internal: Steel Gears
Spline: 25T / Dead Band Width: 2µs
Brass Casing with Ultra Finish
Weight: 5.2oz / 145.2G
Dimension: 1.57 x .79 x 1.5 (LWH)
Torque: 450oz-in @ 6 V/ 500oz-in @7.4 V/ 565oz-in @8.4 V
Speed: .11sec @6 V/.095sec @7.4 V/.08sec @8.4 V
Unload Current: 320mA @ 6.0 V / 360mA @ 7.4 V / 400mA @ 8.4 V
Load Current: 4000mA @ 6.0 V / 4300mA @ 7.4 V / 4600mA @ 8.4 V
BEC not required, recommended for max performance
