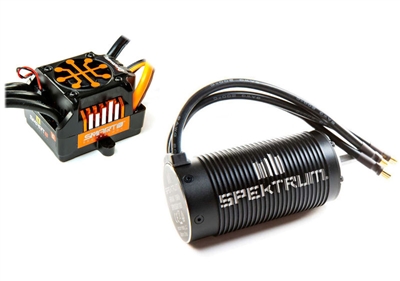

Spektrum Firma 150A Brushless Smart ESC / 2050Kv Sensorless Motor Combo
Spektrum Firma 150A Brushless Smart ESC / 2050Kv Sensorless Motor Combo

Your Price: $219.99

Quantity in Stock:1

Free Shipping
Product Code: SPMXSEMC05
Qty:

Description

Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

This ESC comes bundled with a Spektrum Firma 2050Kv Brushless Motor capable of handling everything this ESC can put out that is a perfect to get you driving with Spektrum Smart technology.

Features:
  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming:
  • Button programming
  • Smart ESC Programming Box
  • SmartLink USB Updating and Programmer application
  • Multi-point protection:
  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection
  • Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
  • Comes bundled with Spektrum Firma 2050Kv Brushless Motor
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC connectors, backwards compatible with EC connectors


What's in the Box?
(1) Spektrum Firma Smart ESC
(1) Spektrum Firma 2050Kv Brushless Motor
(1) Spektrum Smart sticker sheet
(1) Product Manual


Specifications:
Battery Input Lead: IC5, EC5 compatible
BEC: Yes
BEC Continous Current: 5A
BEC Voltage: 6V
Input Voltage: 3S - 6LiPo
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 950A
Maximum Continuous Current: 150A
Motor Output Lead: 5.9" (150mm) 10AWG
Product Height: 1.5" (38.5mm), ESC
Product Length: 2.3" (58mm), ESC
Product Weight: 8.4oz (238g), ESC
Product Width: 1.9" (47.5mm) without tabs, 2.3" (59.5mm) with tabs, ESC
RPM/Volt (Kv): 2050Kv
