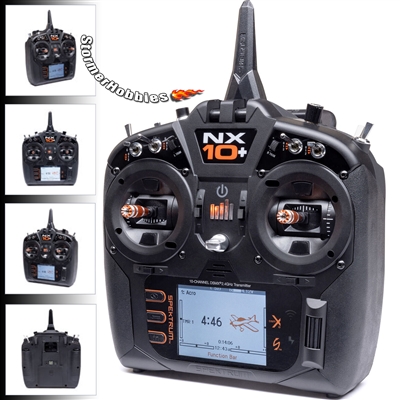

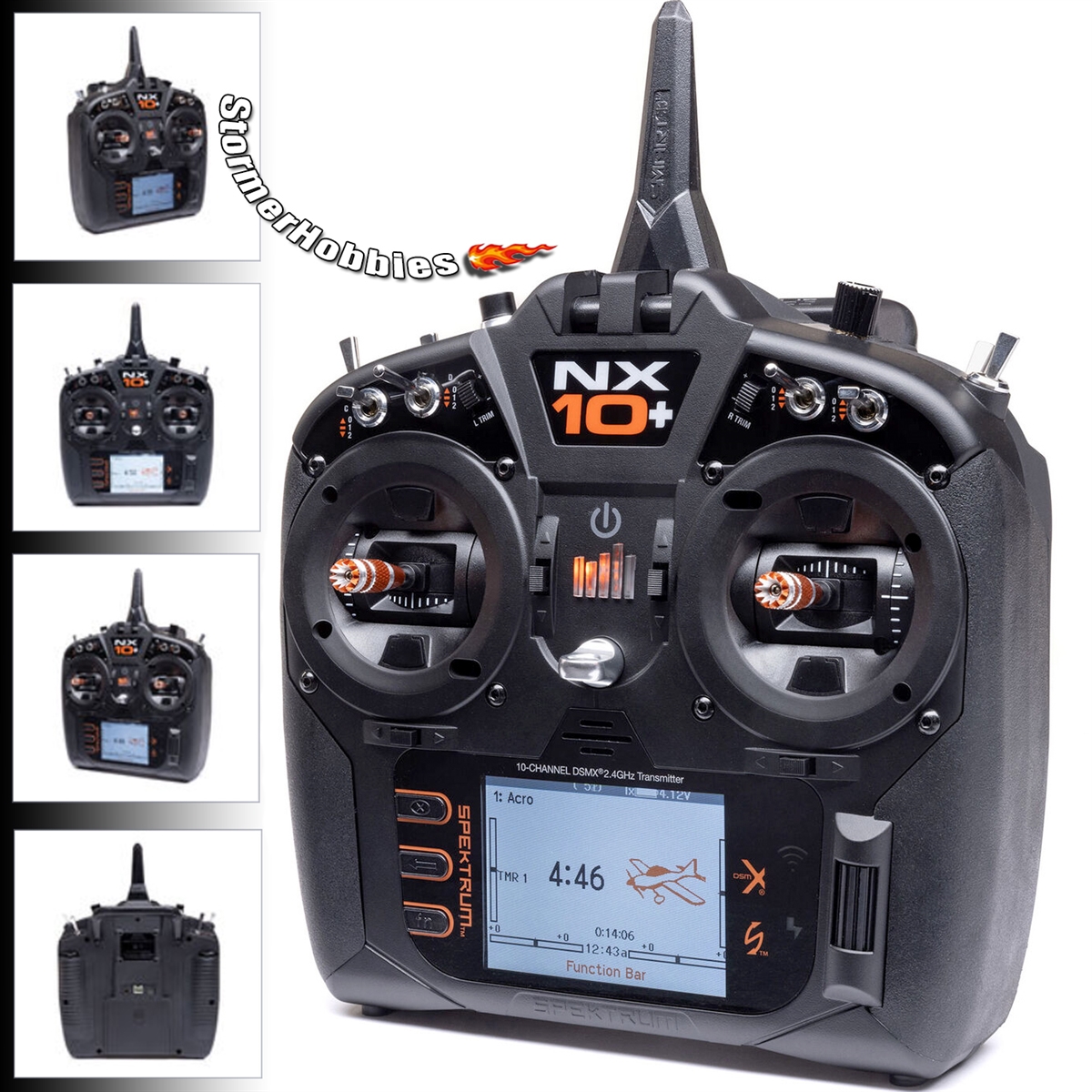

With the Spektrum NX+ series, you'll enjoy the versatility needed to operate your models to their fullest potential and to fly complex aircraft like EDFs and giant-scale balsa airplanes. That's just where the next generation NX10+ advantage begins. The NX10+ also incorporates many of the latest exclusive Spektrum innovations for a level of ease, efficiency, and performance that discriminating pilots demand.

Out of the box, the NX10+ is compatible with Smart Technology. It comes ready to support your Spektrum Smart batteries and Smart Avian ESCs so you can receive essential telemetry data at your fingertips in real time. The NX10+ radio's Wi-Fi connectivity adds even more convenience. In addition to completing product registration straight from the transmitter, you can download firmware updates instantly. Additionally, the transmitter features AS3X+ forward programming and the latest innovative Smart Model File loading from the receiver. It's a modern user experience.

More proven Spektrum radio expertise can be found in the NX10+ transmitter's ergonomic design. The contours, balance, and control positions combine to increase the accuracy of your inputs and provide unparalleled comfort. Hall-effect sensor gimbals offer long-lasting precision with an ultra-smooth feel that's adjustable from the front of the transmitter. An easy-to-use roller wheel interface simplifies programming, with a large 3.2" color display to make menus easy to read. Even a rechargeable 1S 6600mAh Li-Ion transmitter battery and magnetic USB Cable and Micro USB Adapter for convenient USB charging are included.

From its brilliantly designed display to the Wi-Fi connectivity plus built-in Smart Technology support and more, the NX10+ gives experienced pilots access to a wide array of Spektrum exclusive advantages and innovations. Fly your aircraft with next-level control — choose the 20-channel NX10+ transmitter from Spektrum.


Spektrum NX10+ 20-Channel DSMX Transmitter Features

Supports Smart transmitter file downloads

Hall-effect gimbals

Custom sound support and voice alerts

Easy roller-wheel scrolling interface with Clear, Back and Function buttons

USB port for battery charging, USB data transfer and simulator control

Logic switches

Superb ergonomics optimized for comfort and precise, fatigue-free control

Integrated serial port for supporting 3rd party modules (*Serial port does not provide power. An external power source is required)

3.7V 6600mAh 1S Lithium-Ion transmitter battery and a USB cable for convenient USB charging


Specifications

Audio: Alarms and Tones, Preconfigured Callouts

Band: 2.4GHz

Bind Method: Bind Button

Channels: 20

Completion Level: Transmitter Only

Data Port: Yes

Failsafe: Yes

Flight Log Compatible: Yes

Frame Rate: 11ms, 22ms

Gimbal Type: Hall Effect

Input Voltage: 3.7V

Model Memory: 250

Modes: User Selectable Mode 1-4

Modulation: DSMX

Operating System: Spektrum Airware

Product Height: 5.5" (140 mm)

Product Length: 12" (305 mm)

Product Weight: 16 oz. (453.59g)

Product Width: 9.3" (236 mm)

Programmable: Yes

Receiver: Sold Separately

Resolution: 2048

SD Card/Airware Capable: Yes

Technology : Smart, Voice Alerts

Telemetry: Yes

Transmitter (Tx) Battery Type: 3.7V 6600 mAh LiIon

WiFi: Yes
