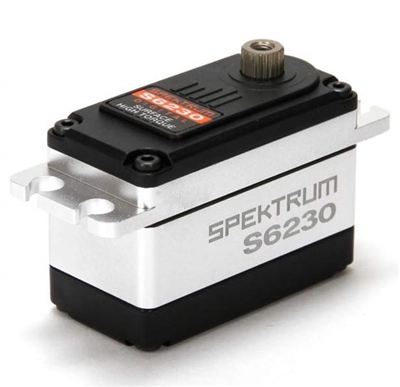

.Spektrum S6230 Digital Surface Servo - 311 oz, .14 sec.
.Spektrum S6230 Digital Surface Servo - 311 oz, .14 sec.

Your Price: $149.99
Deal of the Day Price: $49.99

Quantity in Stock:(Out of Stock)

Free Shipping
Product Code: SPMSS6230
Qty:

Description

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 offers high-torque performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited.These servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Features:
  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft

    Specs:
  • Size Category: 1/10 Buggy, Truck, On-Road
  • Torque: 311 oz-in (22.4kg-cm) @ 6.0V
  • Speed: 0.14 sec/60 deg @ 6v (no load)
  • Length: 1.61 in (41mm)
  • Width: 0.82 in (20.9mm)
  • Height: 1.18 in (30mm)
  • Weight: 2.1 oz (59.5g)
  • Bearing: Dual
  • Motor Type: Coreless
  • Connector Type: Z-Connector, removable
  • Gear Type: Metal
  • Gear Material: Steel, Aluminum
  • Current Draw Idle: 9.8 mA @ 6.0V
  • Current Draw Stall: 4.9A @ 6.0V
  • Voltage: 6.0V
    •
