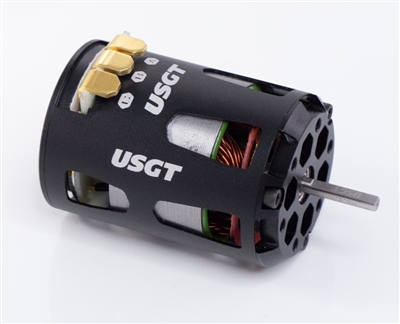

This fixed timing motor was commissioned for production by the USGT organization.
All pieces of this motor are checked during assembly to meet the USGT tolerance. The motor is 100% rebuildable for service. Spare parts are available, NO rotors, sensors or stators outside of the below specification provided will be sold in any way shape or form, aluminum or stainless steel main can or end bell screws are prohibited for USGT competition.
MOTOR CHECKLIST
ROOM TEMP: 75DEG FOR ALL MOTORS DURING ASSEMBLY
AVERAGE STATOR POLE RESISTANCE: (TOLERANCE 30.0--30.7 ohms)
AVERAGE TIMING AT 5,000RPM: (TOLARANCE 30--33deg)
TOTAL SENSOR GAP: (TOLARANCE 0--3deg)
ROTOR ALIGNMENT: (TOLERANCE 0--5deg)
