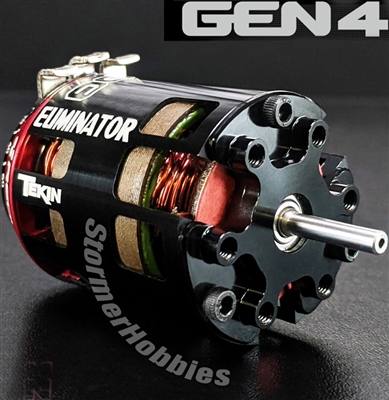

Tekin Redline Gen4 Eliminator Outlaw 17.5T Brushless Motor, 13.5mm x 25.5mm yellow rotor

Tekin’s third generation motors are re-engineered from the ground up resulting in a smaller, lighter and faster sensored motor. On Road or Off, the new GEN4 handles the task in stride, delivering the smooth power across all RPMs that you’ve come to expect from a Tekin motor. Much more than a re-hash and new look, the GEN4 Redline Sensored Motor is now ready for any situation and able to create the speed you need to win.

Specs:

Input Voltage: 2S - 3S lipo
Weight: 158g / 5.6oz
Shaft Dimensions: 3.2mm (1/8") x 15.3mm
Motor Diameter: 35.85mm / 1.40"
Motor Length: 48.5mm / 1.909"
Bearing Dimensions: Front: 4 x 13 x 5mm / Rear: 1/8 x 3/8 x 5/32"
Rotor Size: 12.5mm

Features:

CNC Machined T 6061 Billet Aluminum Heat Sink Can
Neodymium Sintered Magnet
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity
Low Resistance, High Power Solder Tabs
Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
Anodized End-bell plates maximize corrosion and wear resistance
High RPM precision bearings
Rebuild-able Design
Solder-less Sensor PCB replacement
Adjustable Timing
