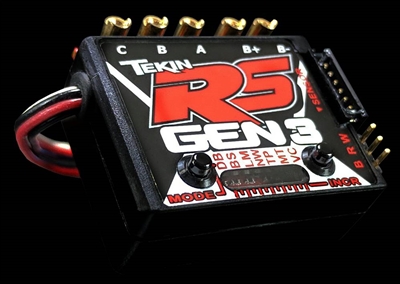

Tekin RS Gen3 ESC

Tekin RS Gen3 ESC

Your Price: $169.99

Quantity in Stock:(Out of Stock)


Product Code: TEKTT1156
Qty:

Description

The RS GEN3 brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 gives you the tools to win!

SPECS:
Controls: Forward/Brake/Reverse
Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
Motor Limit Brushless Mode: 2S - 8.5T 2-pole 36mm Can
3S - 10.5T 2-pole 36mm Can
Motor Limit Brushed Mode: 2S - 10T 36mm Can
3S - 20T 36mm Can
Max Current: 140amps per phase*
BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.0 x 1.3 x .51" / 24.5 x 34 x 12.9mm
Weight: .83oz / 23.5g

FEATURES:
QuickTune One Touch Programming
New HD Solder Post Design
3rd Channel Input for On-The-Fly Drag Brake Adjustments
Adjustable Torque Control *
Adjustable Throttle and Brake Frequencies *
High Voltage Programmable BEC *
HotWire Programming Port *
Data Logging Capability *
Sensor Checker
On-Board Temperature Indicator
ESC Self Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse
Brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs
Sensor Plug for Precise Commutation
Lightweight Chassis Design
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control
