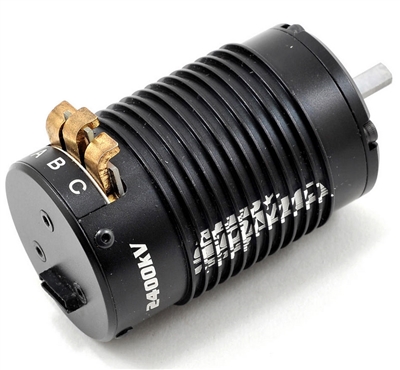

This is the Reedy Sonic 1512 Modified 1/8 Scale Sensored 2400kV Brushless Motor. Reedy has developed the Sonic 1512 series 1/8 scale competition brushless motors with a goal to deliver incredible power and reliability. With recent advancements in battery and ESC technology, electric 1/8 scale buggies and trucks are destined to be the next big racing class, and Reedy is ready to give you the power you need to get your rig across the finish line first.

The precision-machined case features an integrated heat sink to help lower operating temperatures, resulting in less fade over the course of a race, longer run times, and increased motor life. Sensored operation delivers a smooth and controllable power band, while a high-torque 4-pole sintered rotor with neodymium magnets is supported by precision ball bearings for maximum power output and reliability.

Features:

• Dual precision ball bearings
• High-torque 4-pole rotor
• Neodymium sintered magnets
• Integrated heat sink
• Heavy-duty solder tabs
• 5mm shaft
• Sensored or sensorless operation
• Competition proven
• 200mm sensor wire
• Built to ROAR specs

Specifications:
Cells: 2S-4S LiPo
Max Voltage: 14.8V
RPM @ 7.4V: 35,520
kV: 2400
Power (W): 2300
Max Current (A): 155
Efficiency (%): 88
Diameter: 38.9mm/41.5mm w/fins
Length: 65.0mm
Shaft Diameter: 5.0 mm
Weight: 315g
