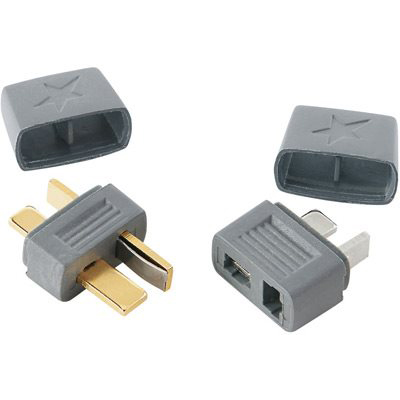

Hobbico Star Plug Male/Female 1 Pair
Hobbico Star Plug Male/Female 1 Pair

Your Price: $2.99

Quantity in Stock:3

Free Shipping
Product Code: HCAM4001
Qty:

Description

Features:
  • Compatible with the most common polarized plug in RC
  • Plug body and rear cap molded from strong heat and impact resistant polymer
  • Rear caps include a center isolator that prevent terminals from shorting
  • Male plug has gold plated terminals
  • Female plug has nickel plated terminals
  • Stainless steel spring on male plug for tight connections even after hundreds of uses
  • Unique design eliminates heat shrink tubing for neater installations

    Includes:
    One Male Star Plug
    One Female Star Plug

    Requires:
    Soldering wires to terminals

    Specs:
    Male Plug
    Dimensions: 0.56 x 0.30 x 0.65 in (14.17 x 7.67 x 16.5mm)
    Weight: 0.11oz (3g)
    Contacts: Gold-plated copper
    Spring: Stainless steel
    Female Plug
    Dimensions: 0.61 x 0.30 x 0.73" (15.42 x 7.67 x 18.5mm)
    Weight: 0.08oz (2.4g)
    Contacts: Nickel-plated copper

    Maximum Wire Gauge: 12AWG (with rear cap installed)

    Maximum Wire Gauge: 12AWG (with rear cap installed)
