From its beginnings, the people behind Spektrum technology have constantly
sought new ways to make the RC experience simpler, safer and, most of all, more fun.
The DX9 is proof positive this relentless spirit of innovation lives. on.
Talk isn't cheap. It's Priceless.
While the DX9 possesses a number of class-leading features, the
centerpiece is its incredibly advanced voice alert system. In fact, with
its lexicon of over 300 words, numbers and phrases, it's quite possibly
the most advanced system of its kind ever seen (or heard) in a
handheld, 9-channel transmitter.
For instance, you can program the DX9 to call out what flight
mode has been chosen when switching from one to another. It can also be
programmed to call out specific values for voltage, temps, or any other
critical telemetry info, on demand. If an alarm goes off, the pilot
won't have to look at the display to see what's happening. The DX9 can
tell them.
The DX9 comes out of the box with English voice alerts. Other languages are available for download.
Wireless Trainer Link
While the DX9 does have a trainer cord jack, it gives instructors
the option to wirelessly "buddy box" with another DSM2®/DSMX®
transmitter. Once bound to another transmitter, ModelMatch® technology
will allow the DX9 to re-link without having to go through the bind
process again.
Forward Programming Ready*
This innovative software feature will equip you for a new
generation of Spektrum components that can be programmed directly
through the DX9. This, along with regular Spektrum AirWare™ software
updates, will ensure the DX9 remain as cutting-edge tomorrow as it is
today.
250 Model Memory
The enormous capacity of the DX9's on-board memory means you will
won't need to juggle models between transmitter memory and a SD card*.
The model memory menu is easier to navigate too. Only memory slots with
model settings saved to them will appear. It won't be necessary to
scroll through empty slots or move models around if one is deleted.

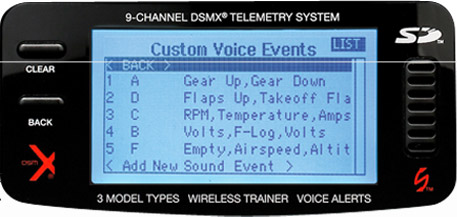

Instead of a simple tone or vibration, the DX9 voice alert system tells you exactly what you want to know.
Fly Smarter with Built-in Telemetry
The DX9 is equipped with a built-in telemetry feature that gives
you real-time information on things like your model's battery voltage,
signal quality, engine or motor temperature, airspeed, altitude
and more.*
Using the voice alert system, you can have the DX9 call out
specific telemetry values that reach or exceed limits you define. You
can also have the DX9 call out a sequence of telemetry values on demand
with the flip of a switch.

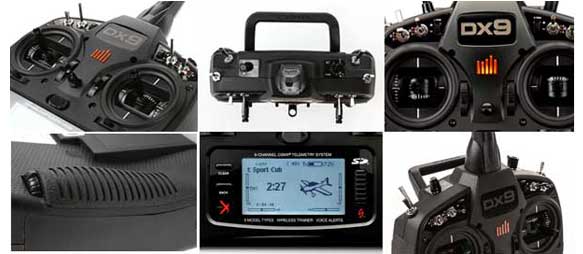

Superior Ergonomics. Made to Fit the Way You Fly.
The weight distribution and ergonomics of the DX9 have been
optimized to fit the way you fly. The result is a sense of balance and
comfort that perfectly complement the speed and precision of DSMX
technology.
Notable features include:
- Comfortable, no-slip rubber grips
- Adjustable stick length and tension
- Smooth, quad-bearing gimbals
- User-adjustable mode configurations (1, 2, 3 or 4)
- User-assigned switch functions
- Easy-to-read backlit screen
- Intuitive SimpleScroll™ programming interface
Programming Features
Airplane
- 10 Wing types: Normal, Dual Aileron, Flaperon, 1 Aileron 1
Flap, 1 Aileron 2 Flaps, 2 Aileron 1 Flap, 2 Aileron 2 Flaps, Elevon,
Elevon-B, 4 Aileron
- 6 Tail types: Normal, V-Tail A, V-Tail B, Dual Elevator, Dual Rudder, Dual Rudder/Elevator
- Flap delay and elevator compensation
- 5 Flight modes
- Dual rates and expo
- 10 Programmable mixes
Multirotor
- Multirotor
- Multirotor Channel Inputs – ALT (Altitude), - ROL (Roll), PIT (Pitch), YAW
- Multirotor Checklists, Warnings and Voice Alerts
- Simplified Multirotor Flight Mode Setup and Switch Assignment
Helicopter
- Active gyro trim
- 7-Point throttle curve
- 7-Point pitch curve
- 7-Point tail curve
- 7 Swash plate types: Normal, 3 Servos 120°, 3 Servos 135°, 3 Servos 140°, 3 Servos 90°, 4 Servos 90°, 2 Servos 180°
- Swash plate timing
- 5 Flight modes
- Dual rates and expo
- 10 Programmable mixes
Sailplane
- 5 Wing types: 1 Servo, 2 Aileron, 2 Aileron 1 Flap, 2 Aileron 2 Flap, 4 Aileron 2 Flap
- 3 Tail types: Normal V-Tail A, V-Tail B
- Flap delay and elevator compensation
- 10 Flight modes
- Dual rates and expo
- 10 Programmable mixes
What's Included
- 2000mAh 2S Li-Ion transmitter battery (installed)
- Custom DX9 neck strap
- 12V Global Power Supply
*SD Card Not Included
Key Features
- 9 fully proportional channels
- Exclusive Black Edition finish
- 11ms frame rates with capable receivers
- Airplane, heli, sailplane and multirotor programming
- 250-model internal memory
- Programmable voice alerts
- Wireless trainer function
- Superior ergonomics that fit the way you fly
- Direct access to system setup from function menu – no need to power off
- Active gyro and governor trim in heli
- Large, backlit LCD screen
- 10 aircraft wing types and 6 tail types
- 7 swashplate types
- 5 sailplane wing types and 3 tail types
- Multirotor flight mode setup, checklists and voice alerts
- Up to 10 sailplane flight modes
- 5 airplane and heli flight modes
- 10 programmable mixes – normal or 7-point curve
- Dual aileron, elevon, and V-tail differential
- 7-point throttle curves for airplanes and helicopters
- 7-point pitch and tail curves for helicopters
- EN328 compatible
Product Specifications
- # of Channels: 9
- Modulation: DSM2/DSMX
- Band: 2.4GHz
- Model Memory: 250
- Modes: Selectable 1, 2, 3 or 4
Overview
Like the original
DX9, the Black Edition gives you an incredible suite of features that
includes voice alerts, 250-model memory, programming for four model
types and a wireless trainer link. To this it adds is a stunning, black
finish that further sets it apart from everything else in its class.
Programmable Voice Alerts The
DX9 lets you keep tabs on important functions without ever taking your
eyes off what you’re flying. You can program voice alerts to call out
what flight mode you’ve chosen or report telemetry information on
demand. If an alarm goes off, you won’t have to look at the transmitter
display to see what’s happening. The DX9 will tell you.
Wireless Trainer Link This
exclusive Spektrum technology gives DX9 users the ability to wirelessly
link up with other Spektrum transmitters and specially-equipped
Spektrum FPV headsets. Once bound to another transmitter or component,
ModelMatch™ technology will allow the DX9 to re-link without having to
go through the bind process again.
With Wireless Trainer Link, you could:
• Wirelessly ''buddy box'' with another DSM2®/DSMX® transmitter when teaching someone to fly.
•
Assign gimbal functions to a 2nd ‘camera’ transmitter when flying a
camera drone so you can focus on avoiding obstacles and maintaining
visual contact while someone else lines up the shot.
• Link with
specially-equipped Spektrum FPV headsets to wirelessly control head
tracking and remotely change video camera frequencies.
250-Model Memory The
enormous capacity of the DX9's on-board memory means you will rarely,
if ever, need to juggle models between transmitter memory and your SD
card*. The model memory menu is easy to navigate too. Only memory slots
with model settings saved to them will appear. You won't have to scroll
through empty slots or move models around if one is deleted.
Because
the DX9 uses the same Spektrum™ AirWare™ software as many other
Spektrum transmitters, you can share model setups across platforms with
almost any Spektrum pilot.
*not included with TX only version.
Fly Smarter with Built-In Telemetry The
built-in telemetry feature gives you real-time information on things
like your model's battery voltage, signal quality, engine or motor
temperature, airspeed, altitude and more.*
Using the voice alert
system, you can program the DX9 to tell you when specific telemetry
values reach or exceed limits you define. You can also have it call out a
sequence of telemetry values on demand with the flip of a switch. If
you want to review telemetry after a flight, the DX9 can be set up to
record the data to its SD card.
*Requires a Spektrum telemetry module and telemetry sensors, sold separately.
Superb Ergonomics The
weight distribution and ergonomics of the DX9 have been optimized to
fit the way you fly. The result is a sense of balance and comfort that
perfectly complements the speed and precision of DSMX technology.
Notable features include: • Comfortable, no-slip rubber grips • Adjustable stick length and tension • Smooth, quad-bearing gimbals • User-adjustable mode configurations (1, 2, 3 or 4) • User-assigned switch functions • Easy-to-read backlit screen • Intuitive SimpleScroll™ programming interface
Programming Features The DX9 comes with an impressive list of programming features that rivals that of much more expensive transmitters.
Airplane • 10 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 1 Aileron 2 Flap, 2 Aileron 1 Flap, 2 Aileron 2 Flap, Elevon A, Elevon B, 4 Aileron • 6 Tail Types: Normal, V-Tail A, V-Tail B, Dual Elevator, Dual Rudder, Dual Rudder/Elevator • Aileron, Flaperon, Elevon and V-Tail Differential • Flap System with Elevator Compensation • 5 Flight Modes • Dual Rates and Expo • 7-Point Throttle Curve • Preset Mixes: Elevator-to-Flap, Aileron-to-Rudder, Rudder-to-Aileron/Elevon • 10 Programmable Mixes – Select Normal or Curve for Each
Helicopter • Gyro and Governor • 7-Point Throttle Curve • 7-Point Pitch Curve • 7-Point Tail Curve • 7 Swash Plate Types: Normal, 3-Servo 120˚, 3-Servo 135˚, 3-Servo 140˚, 3-Servo 90˚, 4-Servo 90˚, 2-Servo 180˚ • 5 Flight Modes, Including Hold • Dual Rates and Expo • Cyclic-to-Throttle and Swashplate Timing Mixes • 10 Programmable Mixes – Select Normal or Curve for Each
Sailplane • 5 Wing Types: Single Aileron, Dual Aileron, 2 Aileron 1 Flap, 2 Aileron 2 Flap, 4 Aileron 2 Flap • 3 Tail Types: Normal, V-Tail A, V-Tail B • Motor Throttle Switch Assignment • Dual Aileron and V-tail Differential • Camber System • Camber Preset • 10 Flight Modes • Dual Rates and Expo • Preset Mixes: Flap-to-Aileron Curve, Aileron-to-Flap, Aileron-to-Rudder, Elevator-to-Flap • 10 Programmable Mixes – Select Normal or Curve for Each
Multirotor • Multirotor Channel Inputs – ALT (Altitude), ROL (Roll), PIT (Pitch), YAW • Multirotor Checklists, Warnings and Voice Alerts • Simplified Multirotor Flight Mode Setup and Switch Assignment
|
|
|
|
|
|
|
