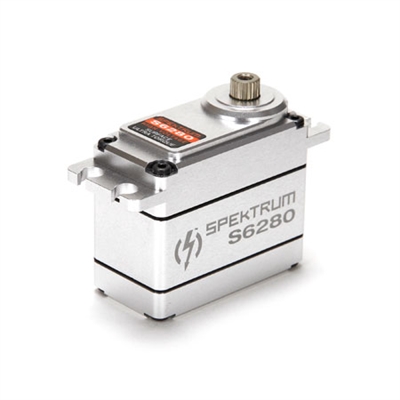

Spektrum S6280 Digital HV Ultra Torque Servo

Home > Radio Systems > Servos > High Torque >

Spektrum S6280 Digital HV Ultra Torque Servo - 496 oz/in, .10 sec.

Your Price: $129.99

Quantity in Stock:(Out of Stock)

Product Code: SPMSS6280

Qty:

Description

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Features:

Removable wire harness with different lengths available

7075 Aluminum hard anodized output shaft/main gear with steel internal gears

Aluminum case for good heat dissipation

Aluminum mounting tabs

NMB dual main bearings

23T output shaft

Specs:

Type: S6280 Ultra Torque, High Voltage

Application: 1/8th Off-Road

Servo Type: Digital

Torque: 364 oz-in (26.2kg-cm) @ 6V
440 oz-in (31.7kg-cm) @ 7.4V
496 oz-in (35.7kg-cm) @ 8.4V

Speed: 0.14 sec/60 deg @ 6.0V
0.11 sec/60 deg @ 7.4V
0.10 sec/60 deg @ 8.4V, at no load

Length: 1.61 in (41mm)

Width: 0.82 in (20.8mm)

Height: 1.38 in (35.1mm)

Weight: 2.8 oz (79.4g)

Spline Count: 23 Teeth

Bushing Or Bearing: Bearing

Bearing: Dual

Motor Type: Coreless

Connector Type: Z-Connector

Connector Wire Length: 7.87 in (200mm)

Gear Type: Metal

Gear Material: Aluminum, Steel

Current Draw Idle: 10.2mA @ 6.0V

Current Draw Stall: 4900mA @ 6.0V

Input Voltage: 6.0–8.4V

Deadband: 2µs
