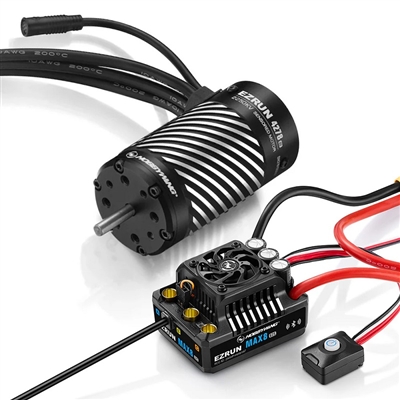

HWI38010607 - MAX8 GS2 ESC + 4278SD 2250KV G2R Motor (3-6S) Combo
Efficient cooling system
The frameless fan design is a patented technology. Rapid transmission of internal heat to the integrated housing radiator is made possible by high airflow from the side of the fan, and a copper thermal conduction sink on the internal power plate. These are built into high-reliability thermal systems to ensure that the ESC is always in good thermal condition.
1/8th Brushless System Turbo Technology
The ESC is best paired with the EzRun 4278/4268SD G2 motor to achieve maximum performance.
Turbo parameters are adjustable from up to 32 degrees, and the speed is significantly increased by up to 25%.
Capacitor Thermal Protection
Capacitor thermal protection implemented by the ESC prevents irreversible damage to the ESC due to overload.
Super Internal BEC
The built-in switch mode BEC features a maximum output of 15A,
and is voltage adjustable from 6V to 8.4V (step:0.1V). This allows
the use of various standard and high voltage servos.
Built-in Capacitor
The ESC has three built-in 680uF capacitors, which increases
the performance by 74% (870uF) compared to the MAX8 ESC.
The ultra-large capacitors built onto the ESC also ensure users do not need to install external capacitors on their vehicles.
Real-time data & data logging function,
Easy to get the power running status. After connecting the OTA module box, turn on the real-time data recording function to access the operating status.
New sensored cable interface
The Max8 GS2 ESC is equipped with a new type of sensored cable interface.
It is high recommended to use the motors from Hobbywing, as the waterproof protection level is at the highest level (IP67).
Features:
EzRun MAX8 G2S has an innovative waterproof sensor interface, enhancing the overall waterproof and dustproof performance. It is easy to deal with the harsh conditionscontaining sediment, ice and snow, water accumulation.
Built-in ultra-powerful switch mode BEC and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Supports turbo timing setting, the timing response is remarkable when used with the matching motor.
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
The built-in (integrated in the switch) Bluetooth function allows for setting and upgrading the esc by directly connecting to the mobile app, without any additional
devices, making it simpler and more convenient.
Data logging function to view various running data on the HW LINK app.
Supports the firmware upgrade of the ESC, you can enjoy the latest functions.
Specifications:
Scale Vehicles 1/8th
Sensored and sensorless brushless motor
Output:6.5mm gold plug(female)
6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
60(L)x48(W)x40.5(H)mm
Input:XT90
